A 90-degree corner is small on a floor plan and huge on a screen design. It is the point where many displays either stop, break, or suddenly look like two separate walls pretending to be one.
Flexible LED panels can wrap around corners, but the real answer depends on the panel design, cabinet structure, curve tolerance, and how the content is mapped.
What “Wrapping a Corner” Really Means
A corner LED display can be built in a few ways. Some systems use a true corner module. Others use small-angle faceting, where several panels create the impression of a curve. Some rental systems use dedicated 90-degree hardware for tighter transitions.
For stages and events, the best option is usually the one that installs quickly and protects the panel edges. Corners are high-risk areas because they are handled often, viewed closely, and exposed to accidental knocks during setup. That combination, fast installation and real edge protection, is what separates a corner-rated cabinet from a standard panel pressed into a job it wasn’t built for.
Where 90-Degree LED Corners Work Best
Corner LED panels are useful anywhere the visual story should continue around an edge. Common settings include:
- Corporate event stages
- Product launch booths
- Concert set pieces
- Exhibition entrances
- Retail window corners
- Cylindrical or semi-cylindrical builds
The format works because people rarely experience spaces from one perfect front-facing angle. They walk around, look sideways, and notice edges. A corner display rewards that movement.
Why Bending Alone Can’t Make a True 90-Degree Corner
The honest technical answer sits between the two extremes in the question. Flexible LED panels bend, but not enough to form a genuine right angle on their own.
Most flexible LED modules are rated for a bending angle range of roughly 135 to 169 degrees measured from flat, with a minimum bend radius around 500mm depending on pixel pitch, allowing for gentle curves around columns or shallow concave and convex walls. A true 90-degree corner is a much sharper deviation than that range covers, which is exactly why dedicated corner hardware exists as its own product category rather than “extra flexible” panels. The systems that wrap a real right angle are usually purpose-built corner cabinets or small-angle faceted modules, not standard flexible panels pushed past their rated curve.
This distinction matters when specifying a system: asking a supplier how far a panel can bend, and asking whether it handles a true 90-degree corner, can get very different, equally honest, answers about the same product line. A corner-rated cabinet tested at a true 90 degrees is a different claim than a flexible panel’s maximum curve rating, and the two shouldn’t be compared as if they answer the same question.
A product like Esdlumen E-Corner illustrates the category directly: built around the 90-degree transition itself, with a rated angle rather than a maximum bend, which is the actual spec worth comparing across corner-hardware options.
The Technical Checks
Before specifying a 90-degree LED panel, ask about the minimum supported angle, panel protection, maintenance access, and whether the product can be mixed with other LED series.
Content mapping should also be discussed early. A logo that sits exactly on the corner may distort or become hard to read. Motion graphics usually handle corners better than small text.
Performance planning depends on real operating conditions, not only product labels, the same principle NREL applies when it evaluates building systems under actual operating conditions rather than lab specs alone. That principle applies here too. A corner LED wall should be evaluated in the space where it will run, with realistic brightness, viewing distance, and maintenance assumptions.
What a Corner LED Display Actually Costs
Budget is usually the first real constraint on any corner LED decision, worth knowing before requesting quotes.
Rental pricing for flexible and modular LED walls in the US typically runs $50 to $70 per square foot per day, with additional days usually priced around 20 percent of the first day’s rate. A small corner section, the kind used at a booth entrance or stage edge, often falls in the $500 to $3,000 per day range depending on pixel pitch and size. Purchasing rather than renting typically costs several times a single rental, which only makes sense for organizations reusing the same booth or stage configuration repeatedly.
Dedicated corner-cabinet hardware, the kind actually rated for a true 90-degree transition, usually carries a premium over standard flat panels of the same pixel pitch, since the cabinet itself is a more specialized manufacturing job. Budgeting for that premium upfront avoids a quote coming back higher than a standard flat wall of the same size would suggest. For designers weighing whether a dedicated corner or a flat-to-corner transition fits a space and budget better, the same instinct for restraint and intentional visual choices that shapes good interior design applies just as directly to where a specialty panel earns its cost.
Flat-to-Corner Transitions
Some of the most effective designs use a flat wall that turns into a corner section. This gives event designers a broad visual surface while allowing the content to wrap just enough to feel dimensional.
It also helps with budgeting. Not every panel in the wall needs to be a specialty panel. The corner section can do the creative work while standard panels carry the main backdrop.
For rental teams, this matters because inventory has to be flexible from show to show. Comparing spec sheets from a few corner-rated systems is useful here, specifically checking rated angle, cabinet weight, and whether the system mixes with standard flat panels from the same rental inventory.
A 90-degree LED corner should not look like a compromise. With the right hardware and content, it can become the part of the display people remember.
Frequently Asked Questions About Corner LED Displays
Not through bending alone. Most flexible LED panels are rated for a bending angle range of roughly 135 to 169 degrees from flat, a gentle curve rather than a sharp right angle. True 90-degree corners are typically achieved with dedicated corner cabinets or small-angle faceted modules instead.
A dedicated corner module is a single cabinet purpose-built around the 90-degree transition. Small-angle faceting uses several standard flat panels set at slight angles to each other, creating the impression of a curve or corner without any single panel bending.
A small corner section for a booth entrance or stage edge typically runs $500 to $3,000 per day, depending on pixel pitch and size, within the broader $50 to $70 per square foot per day range typical for LED wall rentals in the US.
Many flexible LED modules support a minimum bend radius around 500mm, though this varies by pixel pitch and manufacturer. A tighter bend radius generally means a smaller pixel pitch and a higher price.
Yes. Logos or small text placed directly on the corner seam can distort or become hard to read. Motion graphics and larger visual elements generally handle the transition across a corner better than fine detail.
Renting is more cost-effective for a single event or infrequent use, since purchasing typically costs several times a single rental. Buying only becomes worthwhile for organizations reusing the same configuration repeatedly.

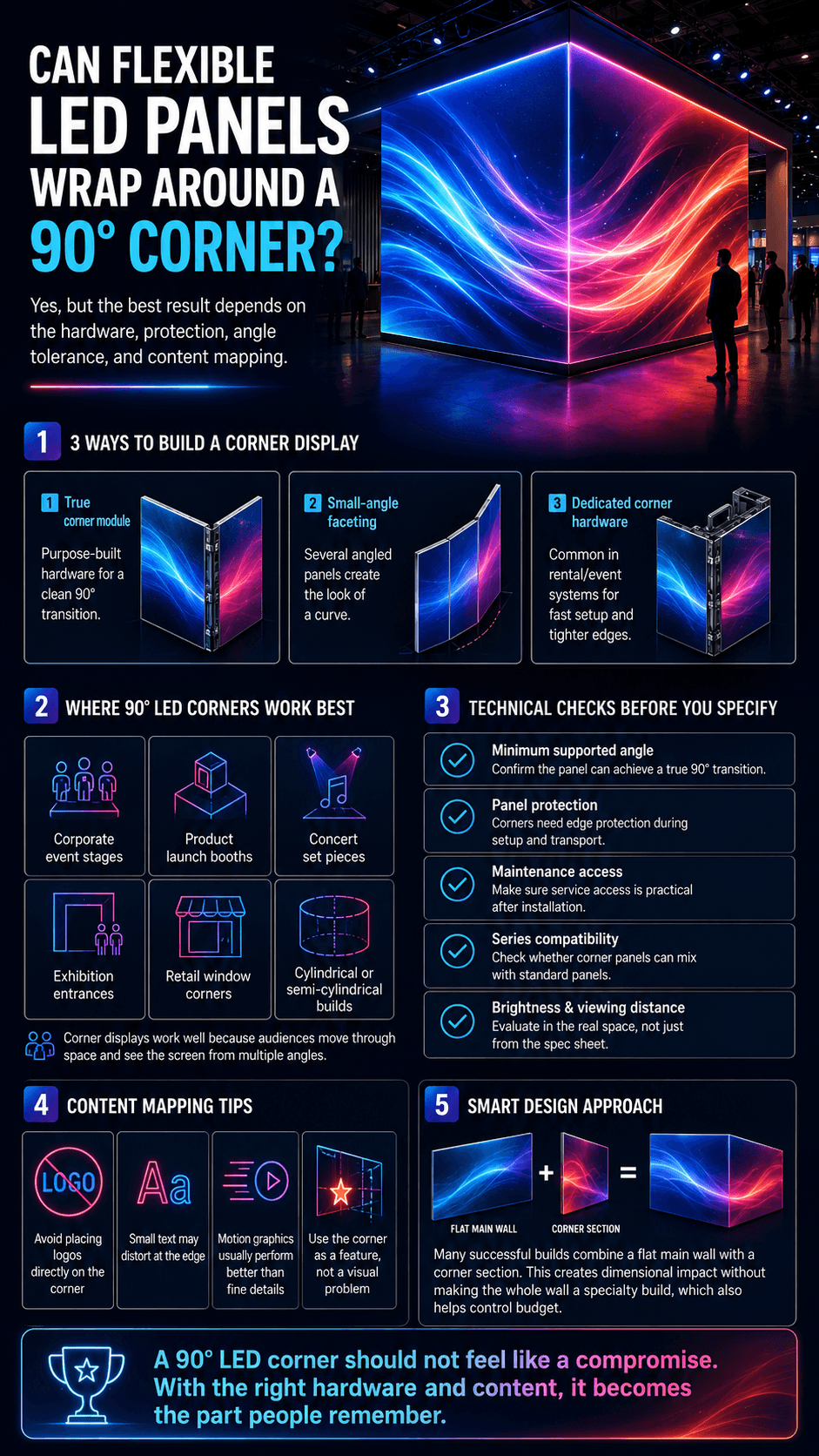

Infographic
