HVAC Fan Motor Check: Warning Signs to Catch Before Peak Season

An HVAC fan motor runs every minute your system runs, summer and winter. In a New Jersey home that means months of continuous load on the outdoor condenser fan in July and on the indoor blower from November through March. When one starts to fail, it rarely quits in a single moment. It gets louder, then weaker, and then on the first genuinely hot or cold day of the year it stops and can take a far more expensive component down with it.

Short answer: if your AC fan is not spinning but the outdoor unit is humming, the cause is usually one of two things. One is a weak run capacitor, which is an inexpensive part. The other is worn or seized bearings in the condenser fan motor, which is a several hundred dollar repair. Other warning signs are grinding or screeching, a fan that cuts out after ten to twenty minutes while the compressor keeps running, and weak airflow at the registers, which usually points to the indoor blower motor instead. Ask the technician to test the capacitor before quoting you a motor, unless your system uses an ECM motor, which has no capacitor at all.

The rest of this guide covers what each motor does, the seven warning signs, a quick symptom checker, what you can safely check with the power off, how to vet a contractor in New Jersey, what fan motor replacement costs in 2026, how the current refrigerant rules affect the repair or replace decision, and what changes when the same motors are running your heat instead of your air conditioning.

What the AC fan motor actually does

Your system has more than one motor, and the difference matters because they fail differently and cost different amounts to fix.

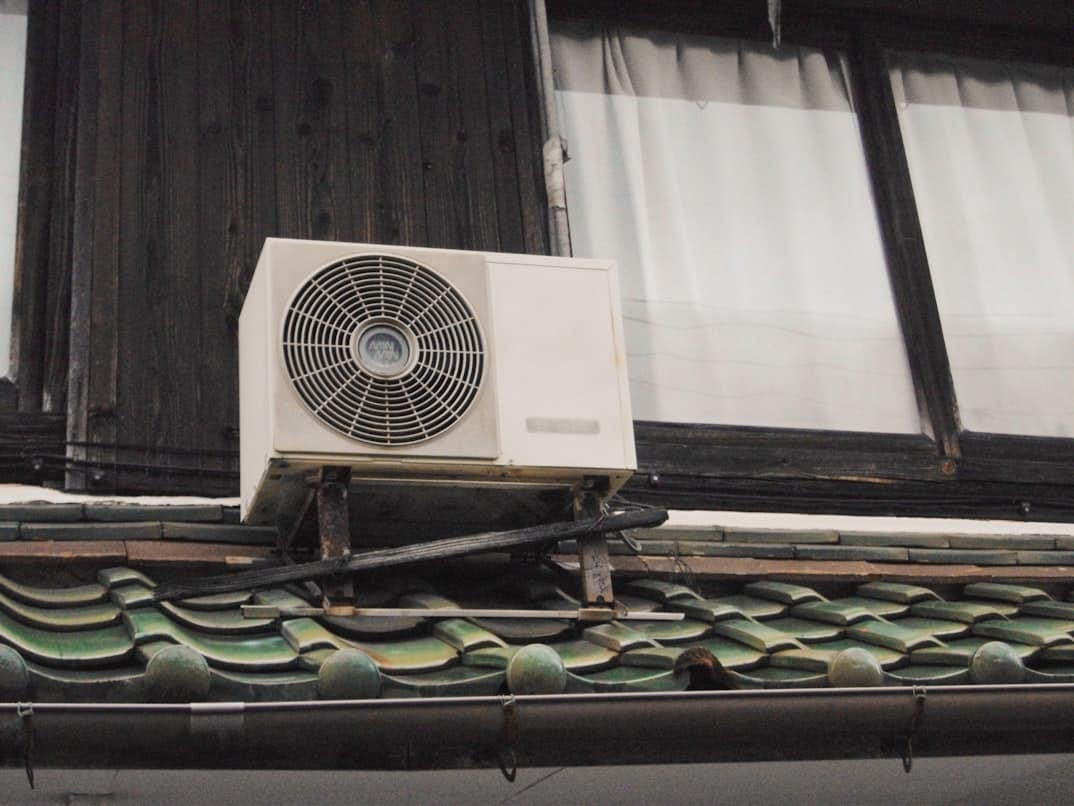

The condenser fan motor sits in the outdoor unit. Its job is to pull air across the condenser coil so the refrigerant can dump the heat it collected from inside your house. It is not the heart of the system. The compressor is. But the condenser fan is what makes the compressor’s work possible, and when the fan stops, the compressor keeps running against a coil that has nowhere to send its heat.

On a heat pump, that same outdoor fan keeps working through the winter. The system runs in reverse, and the fan pulls outdoor air across the coil so the refrigerant can absorb heat from it and carry it inside.

The blower motor sits indoors, in the air handler or furnace cabinet. It pushes conditioned air through your ductwork and out of the registers. When the blower weakens, you feel it as poor airflow at the vents even though the outdoor unit sounds fine.

Both are commonly called “the fan motor,” which is why so much advice online is confusing. Weak air at the vents usually points indoors. A hot house with a quiet or noisy outdoor unit usually points outdoors.

Seven warning signs your fan motor is failing

1. The outdoor unit hums but the fan blade does not turn. This is the single most recognizable symptom. The motor is receiving power and trying to start, but something is preventing rotation. It is almost always one of two things: a weak run capacitor, which is a cheap part and a short job, or seized bearings inside the motor, which is neither. The capacitor section below explains how to tell which one you are looking at.
2. The fan runs for ten or twenty minutes, then stops while the compressor keeps going. That is a thermal overload switch cutting power because the windings are running too hot. The motor will cool down and restart, which makes the problem look intermittent and easy to ignore. It is not intermittent. It is progressive.
3. Grinding, screeching, or a low rumble that was not there last year. Bearing wear. Sealed bearings do not get quieter on their own.
4. Air from the registers has gone noticeably weak. If the outdoor unit sounds normal, look indoors at the blower and at your filter before you assume the worst.
5. The system takes far longer to reach the thermostat setting than it did last summer. Longer runtimes mean more electricity for the same comfort, and more wear on every moving part.
6. A burning or hot electrical smell. Stop. Shut the system off at the breaker and call a technician. Overheating windings are a fire risk, not a maintenance item.
7. Visible oil residue, rust streaks, or a fan blade that wobbles. A bent or unbalanced blade puts constant side load on the motor shaft and destroys the bearings from the outside in.

Working through symptoms methodically before you pick up the phone saves money on almost every appliance in the house, not just this one. The same approach applies to kitchen equipment, and this ultimate checklist before calling a technician for cooktop repair is a good template for how to document what you are seeing before a service call.

Symptom checker: what you notice, the likely cause, and who should fix it

Use this table to narrow things down before you call anyone. It does not replace a meter reading, but it tells you which motor you are probably dealing with and whether the next step belongs to you or to a technician.

What you notice	Most likely cause	Your next step	Technician needed?
Outdoor unit hums, AC fan not spinning	Weak run capacitor or seized motor bearings	Switch off the disconnect and the breaker, then check whether the blade turns freely by hand	Yes, to test the capacitor and motor
Outside AC fan not spinning and the whole unit is silent	No power reaching the unit: tripped breaker, thermostat setting, or a failed contactor	Check the breaker and the thermostat mode	Yes, if the breaker trips again
Outdoor fan not spinning but the compressor is running	Failed fan motor, capacitor, or fan wiring	Turn the system off now to protect the compressor	Yes, as soon as possible
Fan starts, then stops after 10 to 20 minutes	Motor overheating and tripping its thermal overload	Clear debris from the coil and book a visit	Yes
Grinding, screeching, or rumbling	Worn bearings or a blade striking debris	Power off and look for debris or a bent blade	Yes, for bearing wear
Weak airflow at every register, outdoor unit sounds normal	Clogged filter or a weak indoor blower motor	Replace the filter first	Yes, if a clean filter does not help
Burning or hot electrical smell	Overheating motor windings or wiring	Turn the system off at the breaker	Yes, immediately
Furnace burners light, then shut off after a few minutes	Weak blower or clogged filter letting the furnace overheat and trip its high limit switch	Replace the filter	Yes, if it keeps happening
Heat pump outdoor fan stops for a few minutes in winter, sometimes with steam	Normal defrost cycle	Nothing, if it restarts within about fifteen minutes	Only if it stays off or the coil stays iced

Whatever the table points to, decide your spending ceiling before anyone arrives. Ask whether the diagnostic fee is credited toward the repair if you approve it, and settle on the most you would spend before replacement makes more sense. The approach in this guide to budgeting for repair costs before the technician arrives was written for kitchen and laundry appliances, and it works just as well for a cooling or heating system.

The capacitor question: why a cheap part gets misdiagnosed as an expensive one

Most residential outdoor units use a permanent split capacitor (PSC) motor paired with a dual run capacitor, a small cylindrical component that gives both the compressor and the fan motor the electrical kick they need to start turning. Run capacitors are among the most common failure points in the entire system. They degrade with heat, and New Jersey summers deliver plenty of it.

When a run capacitor weakens, the fan motor hums and does not spin. That is exactly what a seized motor does. The difference is that a capacitor is an inexpensive part and a fifteen minute job, while a motor replacement is a several hundred dollar repair.

A technician who tests the capacitor against its rated microfarad value before quoting a motor is doing the job properly. A technician who quotes a motor replacement without testing the capacitor first is not. You are entitled to ask which one happened, and asking that single question is often the difference between a small invoice and a large one.

The reverse also matters. If a capacitor has been replaced and the motor fails again within a season, the motor itself is usually the underlying problem and the capacitor was a symptom, not a cause.

When the capacitor rule does not apply: ECM motors

Everything above assumes a PSC motor. Many newer systems use an ECM, or electronically commutated motor, instead. An ECM runs on a built-in electronic control module and does not use a run capacitor at all, so testing the capacitor first simply does not apply.

The indoor blower is where you are most likely to find one. Furnaces manufactured since July 3, 2019 must meet a federal fan energy rating, and manufacturers largely met it by switching to ECM blowers, so a gas furnace made since then very likely has one. That standard does not cover the indoor units of central air conditioners and heat pumps, but many newer air handlers use ECM blowers anyway, and variable speed or high efficiency outdoor units often use ECM condenser fan motors as well.

ECM failures look different. The blower may not start at all, may run at one fixed speed, or may ramp up and down for no obvious reason. Before condemning the motor, a technician should check whether the furnace or air handler control board is sending the right signal, and whether the electronic module itself has failed. On many ECM designs the module is a separate section at the back of the motor and can be replaced on its own, which usually costs less than a complete motor. Ask which of those checks was done, the same way you would ask about the capacitor on a PSC motor. An ECM motor costs noticeably more than a PSC motor, so a correct diagnosis matters even more.

Not sure which type you have? Find the data plate on your furnace or air handler, search the model number for its spec sheet, and look for the blower listed as PSC, ECM, X13, constant torque, or variable speed. For the outdoor unit, ask the technician to write the motor type on the invoice. Either way, there is no need to open an electrical compartment to find out.

What you can safely check yourself

Everything below assumes the power is off. Residential outdoor units run on 240 volts, and capacitors can hold a dangerous charge even after the power is disconnected. Do not open the electrical compartment and do not touch capacitor terminals. If a check requires you to do either, it is not a homeowner check.

Kill the power at both points. Switch off the outdoor disconnect box near the unit and the breaker at the panel. Both, not one.

Clear the coil. Grass clippings, cottonwood seed, pollen, mulch, and dryer lint pack into the condenser fins and choke airflow. Rinse the fins gently from the inside out with a garden hose, never a pressure washer. Give the unit two feet of clearance on all sides.

Spin the fan blade by hand. It should turn freely and coast for a moment. If it is stiff, notchy, or will not budge, the bearings are gone.

Look for the obvious. Oil residue around the motor housing, corrosion on the housing or fasteners, a visibly bent blade. Homes near the shore see accelerated corrosion from salt air, and it shows up on the motor housing before it shows up anywhere else.

Change the filter. ENERGY STAR recommends inspecting, cleaning, or changing the filter in your air conditioner, furnace, or heat pump once a month, and notes in its heating and cooling maintenance checklist that airflow problems can reduce system efficiency by up to 15 percent. A restricted filter makes the blower work harder for less air, which is exactly the condition that shortens motor life.

Reduce the load on the system. Anything that lowers heat gain lowers runtime, and lower runtime means less wear on every motor in the house. Window film on south and west facing glass is one of the least disruptive ways to do it, and applying it is genuinely a weekend job if you follow a proper method for applying window film with water for a bubble free finish.

What a professional fan motor service should include

A real pre-season visit is not a walk around the unit. Ask what is on the checklist before you book, and expect these items on it.

• Voltage and amp draw measured under load and compared against the motor’s nameplate rating. A motor pulling above its rated amps is failing even if it is still spinning today.
• Capacitor tested against its rated microfarad value, or the control module and signal checked on an ECM motor.
• Bearings and shaft checked for play and free rotation.
• Blades inspected for balance and damage.
• Condenser and evaporator coils cleaned.
• Condensate drain checked.
• Contactor points inspected for pitting.
• Refrigerant charge verified, because a system running low can make the whole unit look like it has a fan problem when it does not.

Whoever you call, ask for that checklist in writing, ask whether the capacitor gets tested before a motor is quoted, and ask what you pay if the motor turns out to be fine.

The timing matters as much as the checklist. ENERGY STAR advises checking the cooling system in spring and the heating system in fall, before contractors get busy and before you find out the hard way. Booking in April or October costs the same as booking in July or January and gets you a technician who is not working through an emergency backlog.

How to tell a good HVAC contractor from a bad one

The repair is rarely the problem. The diagnosis is. Four things separate a shop worth keeping from one worth leaving.

They measure before they quote. Amp draw against the nameplate, capacitor against its rated value, static pressure if airflow is the complaint. A quote produced without a meter is a guess with an invoice attached.

They show you the failed part. Not a photo of a generic one, yours.

They quote the repair before they quote the replacement. A contractor whose first answer to a $400 problem is an $8,000 system is selling, not diagnosing.

They write down what they did. Readings, part numbers, what they recommend watching next season.

If you run an HVAC company yourself, none of that is accidental. The shops that do it consistently have built it into how they run, and there are practical ways to improve how your HVAC business works that start with exactly this, making the diagnostic process visible to the customer instead of asking them to take the invoice on faith.

Hiring for fan motor service in New Jersey

New Jersey licenses HVAC work at the state level. Anyone who contracts heating, ventilating, air conditioning, or refrigeration work for the public needs a Master HVACR Contractor license from the New Jersey State Board of Examiners of HVACR Contractors, which sits within the Division of Consumer Affairs. A legitimate contractor can give you a license number on the spot, and you can check it against the state’s records before anyone touches your equipment. Someone offering to swap a condenser fan motor for cash, with no license number to show, leaves you with far less recourse if a mismatched replacement motor ends up damaging the compressor.

The contractor’s own website is a quick second check. Real customer reviews, a clear way to book, and accurate local details are among the features every local business website should have. For an HVAC contractor, add a visible license number and a clearly defined service area to that list. A shop that cannot get those basics right online deserves an extra question or two before you book.

Tamcoair, a contractor based in Manalapan that works across Monmouth, Middlesex, and Ocean counties, is one regional example. The page it uses for requests to service fan motor in New Jersey homes groups fan motor work with capacitor testing, which is the same pairing this guide argues for. Run any shop on your shortlist, that one included, through the license check and the four tests above before you book.

What it costs

As of October 2026, HomeAdvisor’s AC fan motor replacement cost guide puts the average condenser fan motor replacement at about $500, with most jobs falling between $100 and $700. The motor itself runs about $60 to $250, labor runs $100 to $250 per hour for a job that takes one to four hours, and a diagnostic visit adds $50 to $250, which some contractors waive if you go ahead with the repair. If the system is still under warranty, you usually pay only the labor and the service fee. Indoor blower motors cost more. The same publisher’s blower data puts the average replacement at about $560, with PSC motors at $350 to $800 and ECM motors at $600 to $1,150.

Two caveats on those figures. They are national averages, and New Jersey labor rates tend to run above the national average, so the upper half of each range is the more realistic planning number here. They also move, so check the date on any price guide or quote you are relying on.

Set those numbers against a compressor replacement. This Old House’s AC compressor replacement cost guide puts the average at about $1,550 installed, with typical 2.5 to 4 ton residential systems running up to around $2,100. That is roughly three times the cost of a fan motor, and it is the entire argument for fixing a fan motor early. A failed condenser fan leaves the compressor rejecting heat into a coil with no airflow across it, head pressure climbs, and the system either trips on the high pressure switch or cooks the compressor.

These economics are not unique to cooling equipment. Nearly every mechanical system in a house follows the same curve, where a cheap early symptom gets ignored and the eventual bill arrives several times higher. This Calgary guide to the most common plumbing issues and how to fix them describes the same pattern, where the slow drain and the burst line are usually the same problem six months apart.

Repair or replace the whole system?

Replace the motor if the system is under twelve years old, the compressor and coil are sound, refrigerant is a currently supported type, and the repair quote is under about a third of replacement cost.

Consider replacing the whole system if the unit is fifteen years or older, has already needed a compressor or coil repair, or if this fan motor would be the third repair in two seasons. At that point you are financing an old system one part at a time. Age on its own is the weakest of those three signals, so weigh it against the other two rather than treating it as the decision.

R-22 systems are a separate case, and a more nuanced one than most articles admit. R-22 has not been produced or imported in the United States since 2020, so anything touching the refrigerant circuit now depends on reclaimed stock and is priced accordingly. A fan motor replacement is not one of those jobs. The motor sits outside the sealed system, so swapping it on an R-22 unit is as routine as on any other. A refrigerant leak on the same unit is a completely different conversation, and that is the repair that usually tips an old system into replacement territory.

A contractor who walks you through this calculation instead of defaulting to a full system quote is worth keeping.

What the 2026 refrigerant rules mean for your repair decision

If a contractor tells you your R-410A system is now illegal or has to be replaced, that is wrong, and it is the most common piece of misinformation circulating in this market right now.

Here is the actual position as of October 2026. Under the EPA’s Technology Transitions Rule, new residential air conditioners and heat pumps using R-410A could no longer be manufactured or imported in the United States after January 1, 2025. New equipment now uses R-454B or R-32, both of which sit under the rule’s global warming potential threshold. That is a restriction on manufacturing, not a ban on the equipment already in your yard.

Existing R-410A systems stay legal to run, legal to service, and legal to recharge. Replacing a fan motor on one is completely routine.

There was a second deadline that would have blocked installation of pre-2025 R-410A inventory after January 1, 2026. The EPA removed it. A final rule published in May 2026 and effective July 27, 2026 lifted that installation cutoff for qualifying residential and light commercial equipment manufactured or imported before January 1, 2025. Plenty of articles still online repeat the withdrawn date as though it stands. It does not federally, though some states wrote the original deadline into their own law, New York among them, so confirm the position where you live before buying equipment. Several industry groups have since challenged parts of the final rule in court, with most of the criticism aimed at its commercial refrigeration provisions rather than the residential change, which contractor and distributor groups publicly supported.

What this changes about your repair decision is narrower than the headlines suggest. Under the AIM Act, U.S. production and import of HFCs, the refrigerant family that includes R-410A, step down until they reach 15 percent of the historic baseline in 2036, so the refrigerant itself gets more expensive to buy across the remaining life of an older system. If your unit is fifteen years old and has a history of leaks, that trajectory is a reason to plan a replacement on your own timing rather than during a July breakdown. If it is nine years old, holds its charge, and needs a fan motor, replace the fan motor.

Fan motor problems in heating season: furnace blowers and heat pumps

Most fan motor advice stops when air conditioning season ends. The motors do not. The indoor blower that moves cooled air all summer is the same motor that moves heated air all winter, and on a heat pump the outdoor fan keeps running through the coldest months too. A heat pump’s outdoor fan motor can log far more hours in a year than a cooling-only condenser fan, which is one reason it tends to wear out sooner.

Furnace blower motor warning signs

A weak furnace blower motor rarely announces itself with noise first. The common pattern is short cycling: the burners light, the house starts to warm, and a few minutes later the burners shut off while the blower keeps running. Without enough airflow across the heat exchanger, the furnace overheats and its high limit switch cuts the flame as a safety measure. A clogged filter causes exactly the same pattern, so change the filter before you assume the motor is failing.

If a clean filter does not fix it, or if you hear the blower straining, squealing, or humming without moving air, book a technician. Repeated high limit trips are hard on the heat exchanger, and a cracked heat exchanger is a carbon monoxide risk, not just an expensive part. Any home with a gas furnace should have a working carbon monoxide alarm near the sleeping areas.

Heat pump fan not spinning in winter? Check for defrost first

In cold, damp weather, frost builds up on a heat pump’s outdoor coil. To clear it, the system briefly switches into cooling mode and the outdoor fan stops so the coil can warm up. You may see steam rising from the unit and hear a whoosh when it switches back. That defrost cycle usually lasts a few minutes and is completely normal, so a heat pump fan not spinning for a few minutes on a cold morning is not a failure. A fan that stays off while the coil turns into a solid block of ice is a failure, and so is a fan that hums without turning, which brings you back to the capacitor and ECM checks above.

If you are replacing an old furnace or air conditioner with a heat pump, it also becomes one of the largest electrical loads in the house. Homes adding solar panels, a battery, or an EV charger around the same time should plan how those loads share power, which is the job a home energy management system is built to do.

Quick answers on fan motor lifespan, DIY repair, capacitors, and R-410A

What to do before the next heatwave or cold snap

A fan motor almost never fails without warning. It gets louder, it gets weaker, it starts cutting out, and then it quits. Every one of those stages is a chance to spend a few hundred dollars instead of a couple of thousand. Listen to the outdoor unit at the start of each season, keep the coil clear, change the filter, and have a licensed technician measure amp draw and check the capacitor or ECM module before the first heatwave in spring and before the first hard freeze in fall.

About this article: this is a homeowner guide, not technical service documentation. The diagnostic and safety guidance follows standard HVAC service practice and the ENERGY STAR heating and cooling maintenance checklist. Cost ranges come from the HomeAdvisor and This Old House cost guides linked in the cost section, checked in October 2026. The ECM section reflects the federal furnace fan efficiency standard that took effect on July 3, 2019. The refrigerant timeline reflects the EPA Technology Transitions Rule and its May 2026 amendment. New Jersey licensing information comes from the State Board of Examiners of HVACR Contractors. Tamcoair is named as a regional example of the service described. Sites Gallery has no commercial relationship with the company, was not paid for the mention, and receives nothing if you contact them. Nothing here replaces a licensed technician working on your specific equipment. Last reviewed October 2026.
